VINE™

VN-SERIES | FLEXIBLE LIGHTING SYSTEM



SPEC SHEET

Ordering Information

Product Description

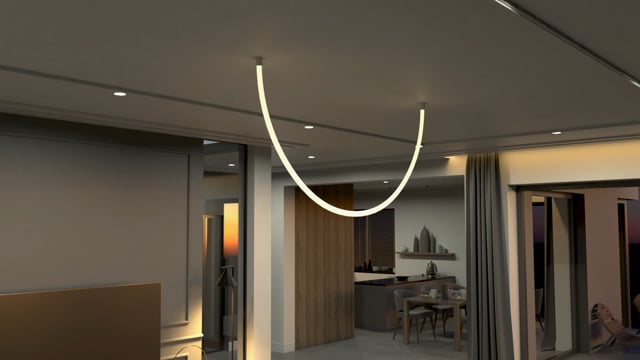

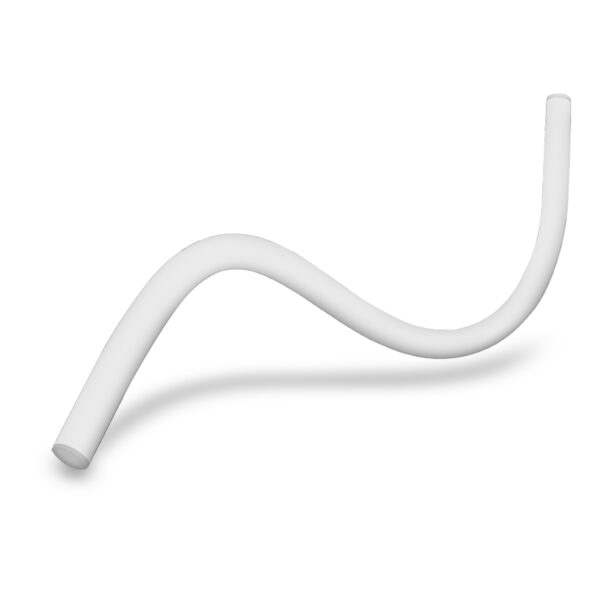

Unleash your creativity and discover the infinite possibilities of this highly flexible silicone fixture. Five mounting options allow you the freedom to create pendants, circles, arches, flush mounts, suspended mounts or free-form designs. Ideal for a myriad of hospitality environments both indoor and outdoor.



  • 360º Continuous Light Source
  • Universal Dimming
  • Five Mounting Options
  • 36,000 Hour Life
  • IP65 Rated for Outdoor Use
  • Factory-Installed Power Feed
  • Injection-Molded Flush End Caps
  • For Use with 24V Power Supplies

Technical Specifications

MODEL VN24K VN27K VN30K VN35K VN40K
Kelvin 2400K 2700K 3000K 3500K 4000K
Lumens 230 lm/ft 268 lm/ft 275 lm/ft 281 lm/ft 290 lm/ft
Series VN—Vine
Input Voltage 24V DC
Watts per Foot 24.39 W/ft
Max Run Length Unlimited, Power Feed Every 16.4ft
Beam Angle 360°
Dimensions 1″ (25mm)
Bend Radius 4.72″ (120mm)
CRI 90+
Dimming Options PWM, Triac, 0-10V, DMX, Hi-Lume
Temp Range -22°F (-30°C) to 131°F (55°C)

Product Dimensions

Available Accessories


OR

VISIBLE MOUNTING CLIP


Surface Mounts Straight or Curved Runs

Model VN-25-CP
Material Clear Polycarbonate
Length 0.984″ (25mm)
Width 2.032″ (51.6mm)
Height 1.063″ (27mm)
Internal Width 1″ (25.4mm)


OR

CONCEALED MOUNTING CLIP


Surface Mounts Straight or Curved Runs

Model VN-25-CCP
Material Clear Polycarbonate
Length 1.43″ (36mm)
Width 0.75″ (19mm)
Height 0.27″ (7mm)
Effective Height 0.11″ (3mm)


SPLICE


Connects Power Feed End to Terminal End

Model VN-25-CS
Material Aluminum
Length 1.358″ (34.5mm)
Diameter 1.22″ (31mm)
Internal Diameter 1″ (25.4mm)


ARCH


Surface Mounts Power Feed End and Terminal End

Model VN-25-Ma-FF
Material Aluminum
Length 1.654″ (42mm)
Diameter 1.28″ (32.5mm)
Internal Diameter 1″ (25.4mm)


FLUSH PENDANT

EC—End Cap

CM—Ceiling Mount

Surface Mounts Power Feed End and Caps Terminal End

Model VN-25-FP-FF
Model w/ Sleeve* VN-25-FP-XXX
Material Aluminum
EC Length 1.32″ (33.5mm)
EC Diameter 1.24″ (31.5mm)
CM Length 1.654″ (42mm)
CM Diameter 1.28″ (32.5mm)
Internal Diameter 1″ (25.4mm)

*Polycarbonate sleeve (not pictured) is required for Vine to hang perfectly vertical. XXX is the sleeve length in inches


SUSPENDED PENDANT

EC—End Cap

SP—Suspended Pendant

Suspends Power Feed End and Caps Terminal End

Model VN-25-SP-V-FF
Model w/ Sleeve* VN-25-SP-V-XXX
Material Aluminum
EC Length 1.654″ (42mm)
EC Diameter 1.24″ (31.5mm)
SP Length 2.677″ (68mm)
SP Diameter 1.24″ (31.5mm)
Internal Diameter 1″ (25.4mm)
Cable Length Variable, 6ft max

*Polycarbonate sleeve (not pictured) is required for Vine to hang perfectly vertical. XXX is the sleeve length in inches
