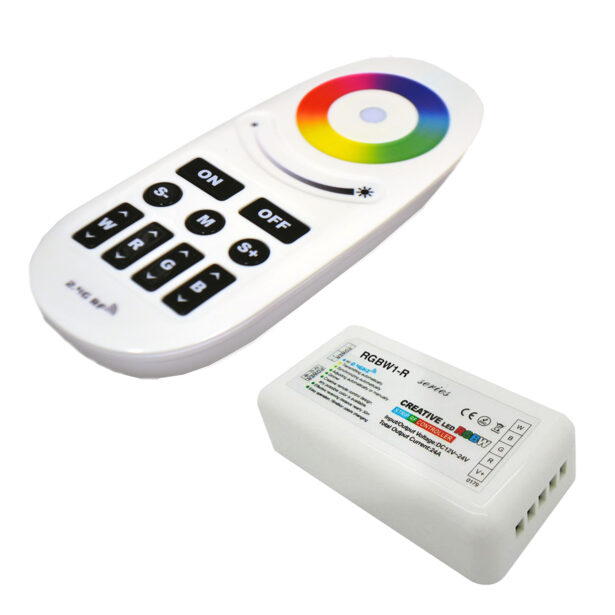

Product Description

The RGBW1-KIT is an RGBW single-zone sytem including remote control and receiver module. The single-zone system allows for independent control of color or white. Additionally, this series has basic mixing capabilities providing the ability to blend white into other colors.

Product Features

  • 4-channel RGBW receiver for controlling one zone
  • Individual control of white, red, green, & blue channels
  • Multiple receivers can be controlled by one remote
  • Multiple remotes can be used simultaneously
  • Nine preset color-changing modes

Technical Specifications for Remote

Model RGBW1-C
Device Color White
Voltage 4.5V DC
Battery Compartment 2 x 1.5V AAA batteries
Wireless Control Yes
Operation Frequency 2.4GHz
Range Up to 50ft
Dimensions L*W*D 4-3/4″ x 2-1/16″ x 13/16″
IP Rating IP20
Temp Range -4°F to 122°F
Color Touch Wheel Yes
Dim Range 1% to 100%

Technical Specifications for Receiver

Model RGBW1-R
Input Voltage 12-24V DC
Output 4 x 6A
Constant Voltage Yes
Frequency 2.4GHz
Range Up to 50ft
Dimensions L*W*D 3-1/4″ x 1-3/4″ x 7/8″
IP Rating IP20
Temp Range -4°F to 122°F
Dim Range 1% to 100%

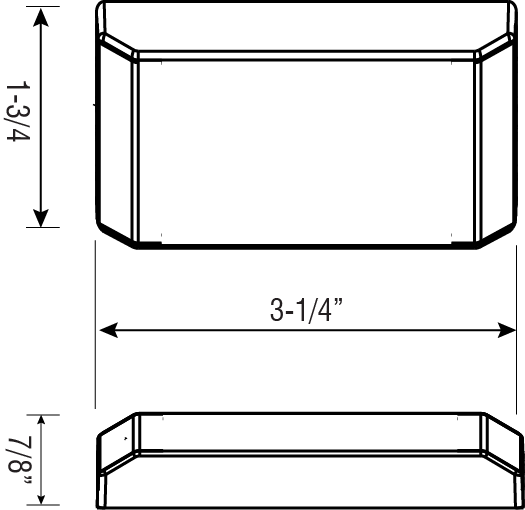

Product Dimensions

Button Operation & Layout

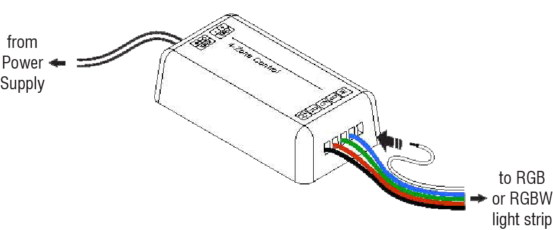

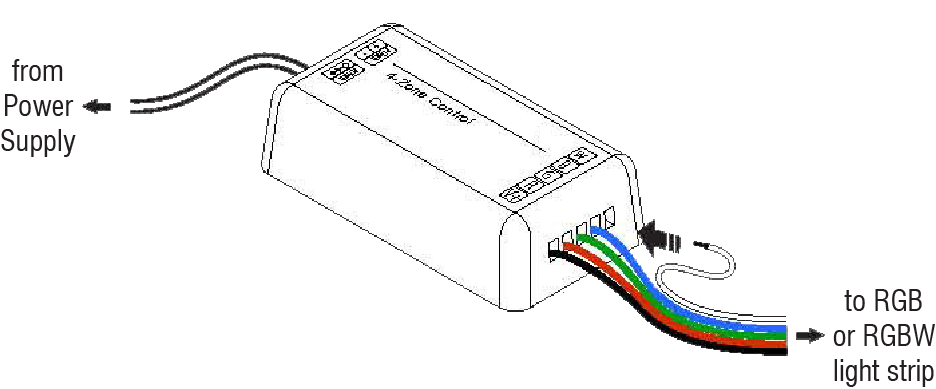

Wiring Example
