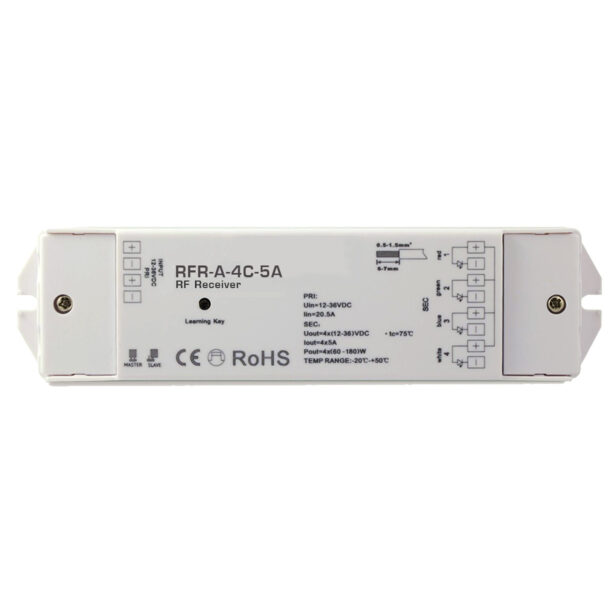

RF 4 Channel Receiver
RFR-A-4C-5A
THE RFR-A-4C-5A is the perfect RF receiver compatible with all RFC transmitters and capable of 1, 2, 3 or 4 channel operation.
- RGBW 4-channel RF Receiver
- Can be Controlled with Multiple RF Controllers
- Compatible with RFC-A-WIFI for Mobile App Control
- Compatible with RFC-A Series Controllers
- Manual Reset Switch
- Learning and Master/Slave Switches for Zone Assignment
Downloads
Technical Specifications
| Series | RFR |
| Input Voltage | 12–24V DC |
| Output Voltage | 4 × 5A |
| Constant Voltage | Yes |
| Device Color | White |

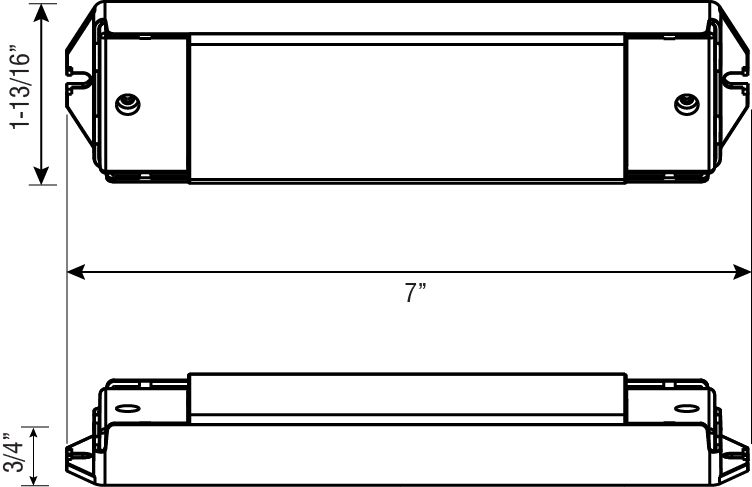

| Length | 7.00” (177.80mm) |
| Width | 1.81” (46.03mm) |
| Height | 0.75” (19.05mm) |
| IP Rating | IP20 |
| Dimming Range | 1% – 100% |
| Operation Frequency | 869.5MHz |
| RF Range | Up to 50ft |
| Operating Temp. | -4°F (-20°C) to 122°F (50°C) |
| Storage Temp. | -4°F (-20°C) to 167°F (75°C) |
| Indoor/Outdoor | Indoor |
| Input Protocol | RF |
| Output Protocol | PWM |
| Channels of Control | 4 |
| Data Connection Method | Wireless |
| Wire Termination Types | Screw Terminal |
| Requires Programming Boolean | No |
Your Product Code
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
1. RFR
- RFR — RFR
2. A
- A — A
3. 4C
- 4C — 4C
4. 5A
- 5A — 5A
