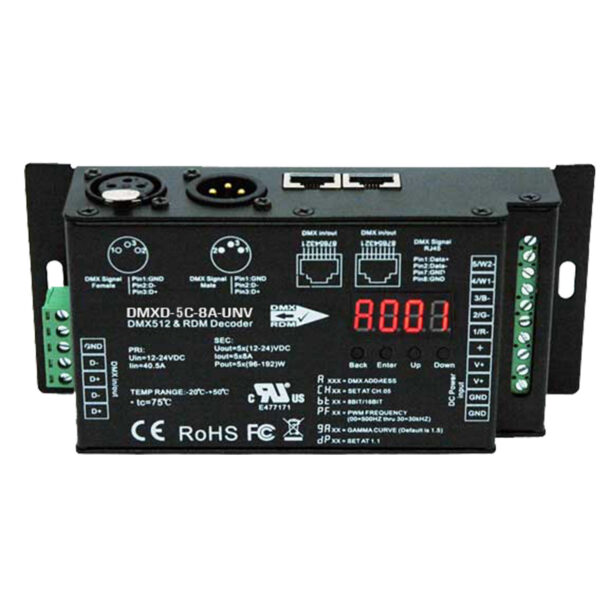

DMX 5 Channel Decoder

DMXD-5C-8A-UNV

Download Spec Sheet Contact Us Add to Project

The DMXD-5C-8A-UNV is the perfect DMX decoder for critical applications where flexibility and ease of install are paramount.

RGBW 5-Channel DMX decoder
Standard DMX 512 Compliant Interface
Digital Numeric Display for Dmx Address Assignment
Adjustable Pulse Width Modulation Frequency
Adjustable Dimming Curve Gamma Value
Accepts DMX via XLR, RJ45, and Terminal Block

Downloads

Spec Sheet

Installation Instructions

Setup Instructions

Warranty

Warranty Info

Technical Specifications

Series	DMXD
Input Voltage	12-24VDC
Output	5 × 8A
Constant Voltage	Yes
Length	6.44” (163.51mm)
Width	2.87” (73.02mm)
Height	1.5” (38.1mm)
IP Rating	IP20
Dimming Range	0.4% – 100%
Operating Temperature	-13°F (-25°C) to 122°F (50°C)
Storage Temperature	-4°F (-20°C) to 167°F (75°C)
Indoor/Outdoor	Indoor
Input Protocol	DMX512
Output Protocol	PWM
Channels of Control	5
Data Connection Method	Screw Terminal, RJ45, XLR 3 Pin
Wire Termination Types	Screw Terminal
Requires Programming Boolean	No
Customer Input Method	Button
