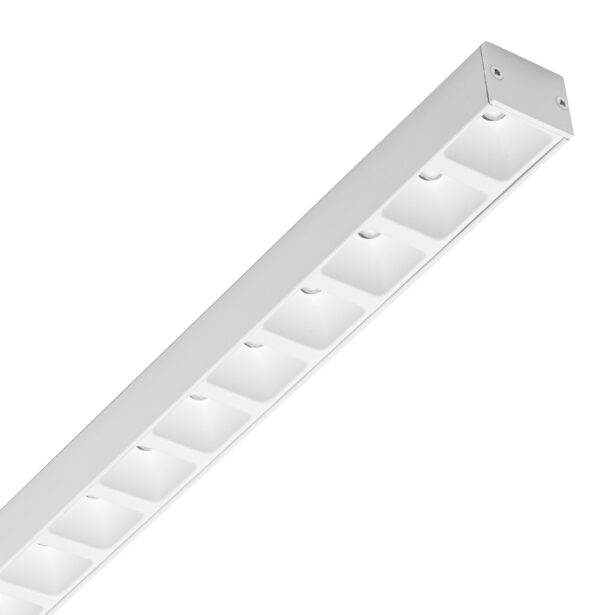

CrossBar™ White Louver

CBWH Series | Low Contrast Parabolic Louver T-Grid Fixture

Download Spec Sheet Contact Us Add to Project

Crossbar provides seamless illumination upon either axis of a drop ceiling system, requiring no modifications to an existing T-grid. Delivering a high-quality light source that is both uniform and direct view, the simplicity of Crossbar along with its universal dimming capability makes it a top choice for a variety of commercial environments.

Low Contrast Parabolic Louver
Easily Mounts to Existing Grid
Fast Installation
Integrated Seismic Strap
UL Listed
50,000 Hour Life
For Use with 24V Power Supplies

Downloads

Spec Sheet

Installation Instructions

Warranty

Warranty Info

Technical Specifications

Length	2ft, 4ft
Color/Temperature	2700K, 3000K, 3500K, 4000K
Dimming Protocol	PWM, 0-10V, DMX 512, DALI, MLV, ELV
Finish	White
Input Voltage	24V DC
Watts per Foot	13W for 2ft, 26W for 4ft
Lumen per Foot	1300 lm for 2ft, 2600 lm for 4ft
Lumens per watt	100 lm/W
Optic	75°
Max Run Length	12ft
CRI	90+
Operating Temp.	-20°F (-29°C) to 158°F (70°C)

Specify Your Product

Use our tool below to create a custom product code and view product compatibility. After making the selections, save the product to a project to keep all your products and specs together in one organized place. Once final, you can order from a nearby distributor.

Product Code:

Make a selection in each category to complete your product code.

1. Item

CBWH — CrossBar White Louver

2. Output

650 — 650 lm/ft

3. Color/Temp

27K — 2700K
30K — 3000K
35K — 3500K
40K — 4000K

4. Length

2 — 2ft (304.8mm)
4 — 4ft (1219.2mm)

5. Optic

75 — 75º

6. Input Voltage

24V — 24V DC

7. Finish

WH — White

8. Mounting

9D — 9/16" Drop Tile
9F — 9/16" Flat Tile
15D — 15/16" Drop Tile
15F — 15/16" Flat Tile
SM — Surface Mount

9. Option

NA — None

Standards and Certifications

Power/Connect Options

Power Lead

REQUIRED ITEM!

Connects a CrossBar or group of CrossBar fixtures to the power supply.

Model

CB-FML-6

Length

6ft (1.83m)

Y-Split Connector

Required to connect each additional CrossBar in a series of fixtures to a single power supply.

Model

CB-FMC-Y2

Length

8″ (200mm)

Jump Connector

Connects Y-split connectors and the final fixture in the series. Do not connect CROSSBAR directly to another CROSSBAR with Jump connectors.

Model

CB-FMC-6

Length

6ft (1.83m)

Mounting Options

9/16″ Grid Flat Tile Mounts

Cb ft n

Model

CB-FT-9

Length

1.97″ (50mm)

Width

0.85″ (21.6mm)

Height

0.25″ (6.4mm)

15/16" Grid Flat Tile Mounts

Cb ft w

Model

CB-FT-15

Length

1.97″ (50mm)

Width

0.92″ (23.5mm)

Height

0.27″ (6.8mm)

9/16″ Grid Drop Tile Mounts

Cb dt n

Model

CB-DT-9

Length

0.92″ (23.5mm)

Width

1.36″ (34.5mm)

Height

0.49″ (12.6mm)

15/16″ Grid Drop Tile Mounts

Cb dt w

Model

CB-DT-15

Length

1.82″ (46.2mm)

Width

1.36″ (34.5mm)

Height

0.49″ (12.6mm)

Surface Mounts

Cb sm

Model

CB-SM

Length

1.97" (50mm)

Width

0.85" (21.6mm)

Height

0.16" (4.2mm)

Compatible Accessories

Junction Box

IP67 Water Rated Junction Box
