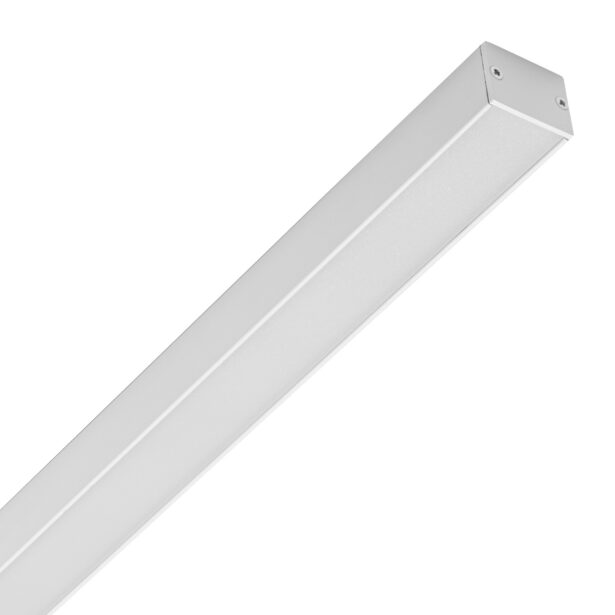

CROSSBAR™ FROSTED LENS

T-GRID CEILING FIXTURE



SPEC SHEET

Product Description

Crossbar provides seamless illumination upon either axis of a drop ceiling system, requiring no modifications to an existing T-grid. Delivering a high-quality light source that is both uniform and direct view, the simplicity of Crossbar along with its universal dimming capability makes it a top choice for a variety of commercial environments.

Product Features

  • Diffuse Wide Angle Lens
  • Easily Mounts to Existing Grid
  • Fast Installation
  • Integrated Seismic Strap
  • UL Listed
  • 50,000 Hour Life
  • For Use with 24V Power Supplies
  • Antimicrobial Finish Available

Technical Specifications

Series CBFR—CrossBar Frosted Lens
Input Voltage 24V DC
Watts per Foot 13W (2ft); 26W (4ft)
Lumens per Foot 1100 lm (2ft); 2200 lm (4ft)
Beam Angle 120º
Max Run Length 12 ft per Power Feed
Dimensions 1″ (25mm) × 0.75″ (19mm) × Variable
CRI 90+
Dimming Options PWM, 0–10V, DMX, DALI, MLV, ELV
Temp Range -20ºF (-29ºC) to 158ºF (70ºC)

The antimicrobial finish used contains Agion®.

SURFACE MOUNTS

Model CB-SM
Width 1.97″ (50mm)
Length 0.85″ (21.6mm)
Height 0.16″ (4.2mm)

9/16″ GRID FLAT TILE MOUNTS

Model CB-FT-9
Width 0.85″ (21.6mm)
Length 1.97″ (50mm)
Height 0.25″ (6.4mm)

15/16″ FLAT TILE MOUNTS

Model CB-FT-15
Width 0.92″ (23.5mm)
Length 1.97″ (50mm)
Height 0.27″ (6.8mm)

9/16″ GRID DROP TILE MOUNTS

Model CB-DT-9
Width 1.36″ (34.5mm)
Length 0.92″ (23.5mm)
Height 0.49″ (12.63mm)

15/16″ DROP TILE MOUNTS

Model CB-DT-15
Width 1.36″ (34.5mm)
Length 1.82″ (46.2mm)
Height 0.49″ (12.63mm)

POWER LEAD—REQUIRED ITEM!
Connects a CrossBar or group of CrossBar fixtures to the power supply.

Model CB-FML-6
Length 6 ft (1.83m)

Y-SPLIT CONNECTOR
Required to connect each additional CrossBar in a series of fixtures to a single power supply.

Model CB-FMC-Y2
Length 8″ (200mm)

JUMP CONNECTOR
Connects Y-split connectors and the final fixture in the series. Do not connect CrossBar directly to another CrossBar with Jump connectors.

Model CB-FMC-6
Length 6 ft (1.83m)
