36P-24V

36 WATT – 24 VOLT | CLASS 2 POWER SUPPLY

SPEC SHEET

Product Description

The 36P-24V is an economical plug-in power supply designed for small residential systems. For use with in-line accessory dimmers only.

  • Plug-in electronic power supply
  • Constant voltage
  • Dimmable on secondary side
  • Overload and short circuit protection with auto-reset
  • UL-listed for indoor use
  • Class 2

Technical Specifications

Model 36-24V
Input Voltage 110~240V AC
Output Voltage 24V DC / Constant Voltage
Max. Wattage 36W
Temp Range -20°F t~ 140°F
Dimensions L*W*D 3-1/2″ x 1-1/2″ x 1-1/8″
120V Cord Length 55″
24V Cord Length 55″
Classification Class 2

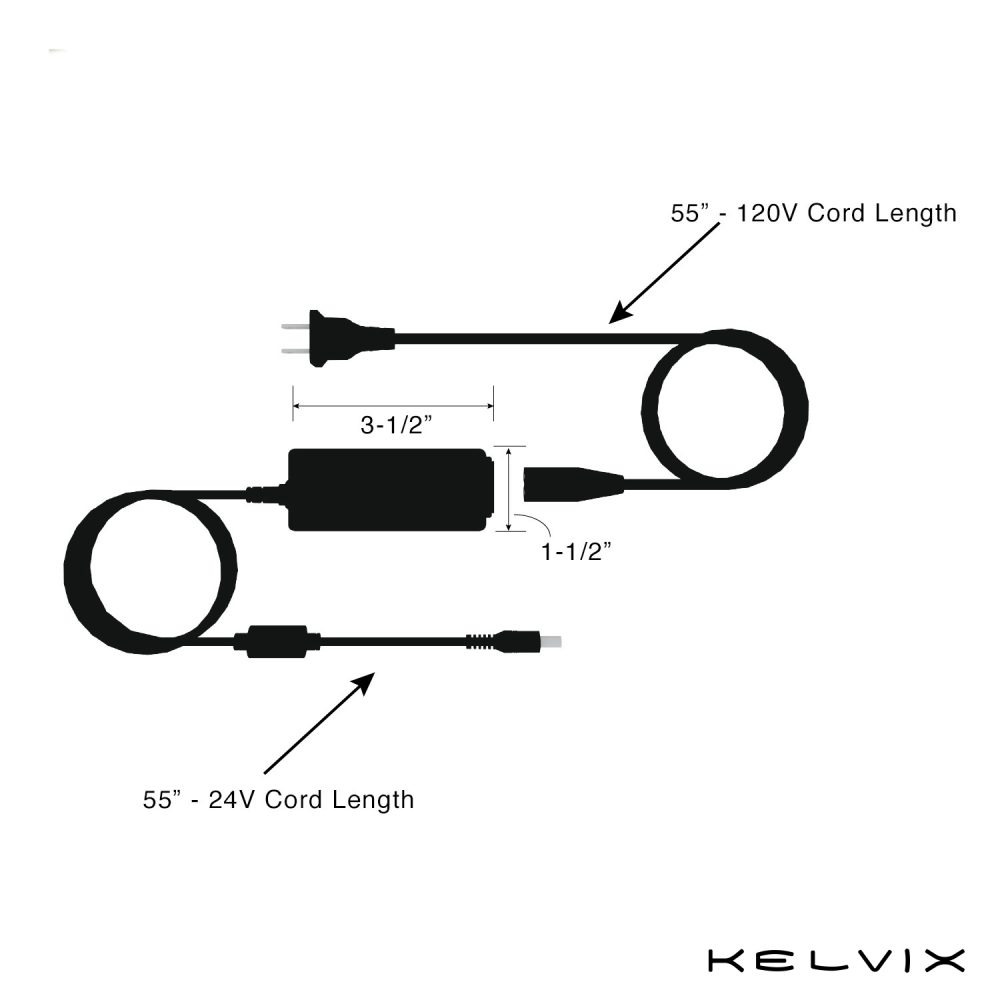

Product Dimensions

DC Plug Wiring

ANA 217

ANA 217

1-1/2" (Height) × 1-15/16" (Width)
