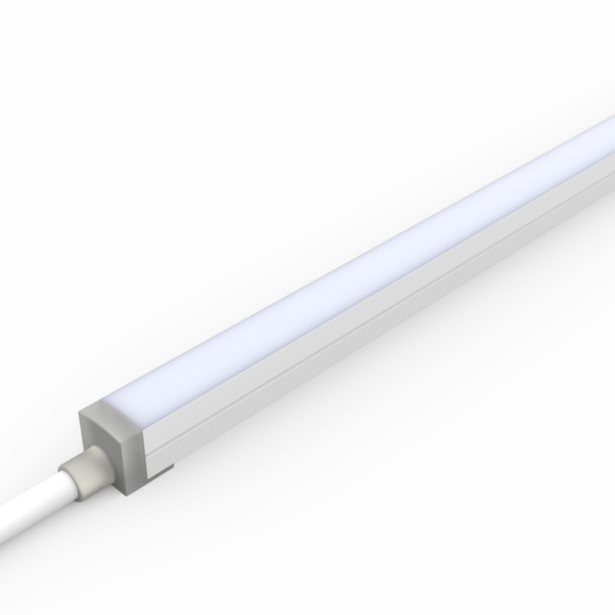

EnduraWave Narrow Static White
0.79" x 0.79" Narrow View Flexible Neon Lighting System
EnduraWave revolutionizes flexibility with its rigid PCB encased in a protective shell, allowing seamless bending and twisting without compromising LEDs or components. Reinforced by durable wires, it ensures long daisy-chain connections with superior tensile strength and 3D bending capabilities.
• Strong Tensile Strength
• 3D Bending Flexibility
• Dimmable with Universal Power Supplies
• 50,000 Hour Life
• Silicone Jacket with IP67 or IP68 Options
• UL-Listed for Indoor and Outdoor Use
• For Use with 24V Power Supplies
Downloads
Technical Specifications
| Color/Temperature | 2700K - 6500K |
| Input Voltage | 24V DC |
| Lumens per Foot | 234 - 252 lm/ft |
| Watts per Foot | 4.51 W |
| Indoor/Outdoor | Indoor/Outdoor |
| Beam Angle | 111° |
| CRI | 90+ |
| IP Rating | IP67/IP68 |
| Viewing Angle | Narrow |
| Life Expectancy | 50,000 Hour Life |
| Feed Orientation | Bottom Feed, End Feed, Side Right, Side Left |
| Bend Direction | 3D Bending Flexibility |

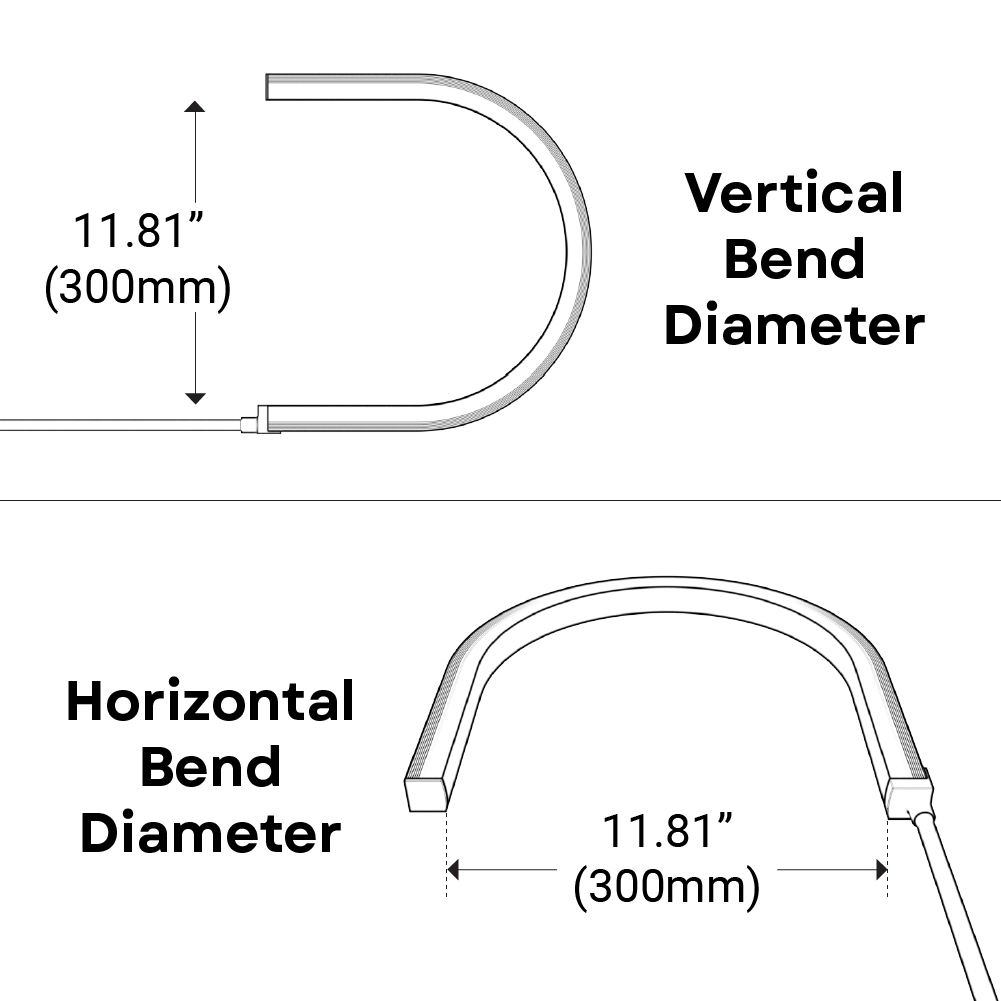

| Bend Radius | 11.81" (300mm) |
| Dimming Options | Triac, ELV, 0-10V, DMX |
| Operating Temp. | -4°F (-20°C) to 140°F (60°C) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- ENN-WL — EnduraWave Narrow White Light
2. CCT
- 27K — 2700K
- 30K — 3000K
- 35K — 3500K
- 40K — 4000K
- 50K — 5000K
- 65K — 6500K
3. Voltage
- 24V — 24V DC
4. Feed Type
- E — End feed
- B — Bottom feed
- SL — Side Left
- SR — Side Right
5. IP Rating
- 67 — IP67
- 68 — IP68
6. Lead Length
- 1 — 1ft
- 3 — 3ft
- 6 — 6ft
- 10 — 10ft
- 16 — 16ft
7. Fixture Length
- xx — Fixture Length
Mounting Options

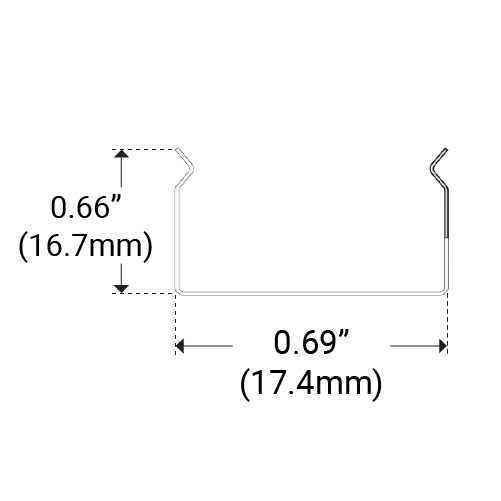

Stainless Steel Flexible Channel
Model
ENN-CH-SS-FLX-1M
Length
39.37″ (1m)
Width
0.69" (17.4mm)
Height
0.66" (16.7mm)
Material
Stainless Steel

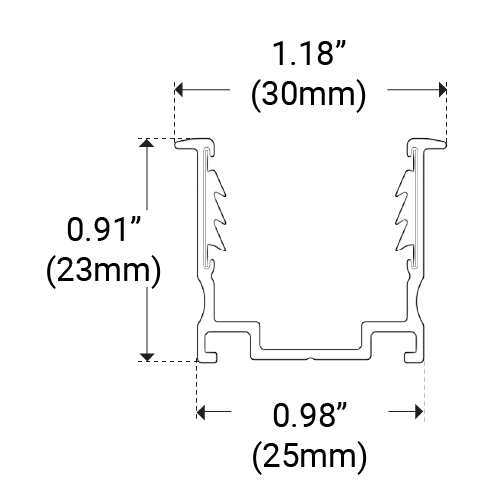

Aluminum Serrated Recessed Channel
Model
ENN-CH-AL-SR-RC-2M
Length
78.74″ (2m)
Width
1.18" (30mm)
Internal Width
0.98" (25mm)
Height
0.91" (23mm)
Material
Aluminum

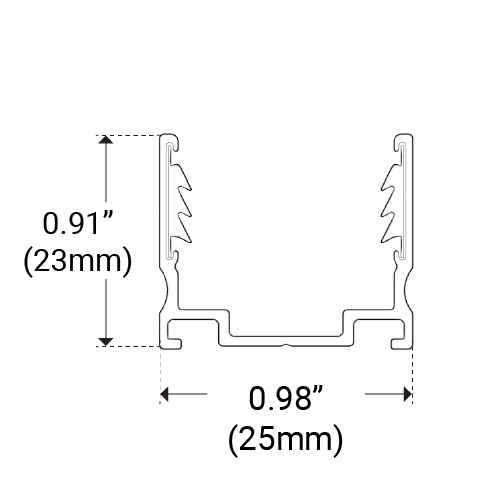

Aluminum Serrated Channel
Model
ENN-CH-AL-SR-2M
Length
78.74″ (2m)
Width
0.98" (25mm)
Height
0.91" (23mm)
Material
Aluminum
Aluminum Serrated Clip
Model
ENN-CLP-AL-SR
Length
1.38″ (35mm)
Width
0.87" (22.05mm)
Height
0.81" (20.5mm)
Material
Aluminum
Compatible Power Supplies
Mini ULV96
96 Watt–24 Volt | Class 2 Power Supply
Mini HLV96
96 Watt–24 Volt | Class 2 Power Supply
HLV192-SC
192 Watt (2 × 96W)–24 Volt | Class 2 Power Supply
ULV192-SC
192 Watt(2 × 96W)–24 Volt | Class 2 Power Supply
ULV96-SC
96 watt–24 volt | class 2 power supply
HLV36-SC
36 Watt–24 Volt | Class 2 Power Supply
SLV192
192 Watt(2 × 96W)–24 Volt | Non Dim | Class 2 Power Supply
SLV96
96 Watt–24 Volt | Non Dim | Class 2 Power Supply
HLV96-SC
96 Watt–24 Volt | Class 2 Power Supply
36P-24V
36 Watt - 24 Volt Class 2 Power Supply
60P-24V
60 Watt - 24 Volt Class 2 Power Supply
96P-24V
96 Watt - 24 Volt Class 2 Power Supply
ULV96
96 Watt - 24 Volt Class 2 Power Supply
HLV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
HLV96
Discontinued 96 Watt - 24 Volt Class 2 Power Supply
ULV192
192 Watt (2x96W) - 24 Volt Class 2 Power Supply
ULV36
36 Watt - 24 Volt Class 2 Power Supply
25HE-24V
25 Watt - 24 Volt Universal Dimming
50HE-24V
50 Watt - 24 Volt Universal Dimming Class 2 Power Supply
24PW-24V
24 Watt - 24 Volt Class 2 Wall Plug Adapter
Compatible Controls & Dimmers
DMX RGBW 4 Channel Decoder
DMX-24506
DMX RGBW 6 Channel Decoder
DMX-26506
DMX 5 Channel Decoder
DMXD-5C-8A-UNV
DMX 4 Channel Decoder
DMXD-4C-5A-TB
8Bit/16Bit DMX Decoder
DMXD-4C-RDM16-5A-TB
DMX 4 Channel Weatherproof Decoder
DMXD-4C-5A-WP
DMX RGBW 3 Scene In-Wall Controller
DMXC-4C-3S-IW-W
DMX RGBW 3 Zone In-Wall Controller
DMXC-4C-3Z-IW-W
DMX CCT 4 Zone In-Wall Controller
DMXC-2C-4Z-IW-W
DMX RGB/CT 1 Zone In-Wall Controller
DMXC-5C-1Z-IW-WH
Pharos LPC
DMX512/eDMX Controller
Pharos LPC X
Large-Scale eDMX Controller
Pharos VLC
Large-Scale eDMX Controller
Pharos VLC+
Large-Scale Façade Video Player
Nicolaudie Stick DE3
Glass Touch Panel DMX512/eDMX Controller
Nicolaudie Stick CW4
Glass Touch Panel DMX512/eDMX Controller
RGBW 4 Channel Controller
RGBW-QC-4C
RGBW 4 Zone Handheld Controller
RFC-A-RGBW-4Z-HH-BT-B
CCT 1 Zone Tabletop Controller
RFC-A-CCT-1Z-TT-BT-B
CCT 4 Zone Handheld Controller
RFC-A-CCT-4Z-HH-BT-B
RGBW 3 Scene In-Wall Controller
RFC-A-RGBW-3S-IW-W
RGBW 3 Zone In-Wall Controller
RFC-A-RGBW-3Z-IW-W
RF/Wifi Controller for RF Receivers
RFC-A-WIFI
Single Color 1 Zone Tabletop Controller
RFC-A-SC-1Z-TT-BT-B
Single Color 4 Zone Handheld Controller
RFC-A-SC-4Z-HH-BT-B
Single Color 1 Zone Handheld Controller
RFC-A-SC-1Z-HH-BT
CCT 1 Zone In-Wall Button Controller
RFC-A-CCT-1ZD-IW-BT-W
CCT 1 Zone In-Wall Knob Controller
RFC-A-CCT-1Z-IW-BT-W
