DMXC-4C-3Z-IW-W

3-ZONE | RGBW | IN-WALL CONTROL STATION

SPEC SHEET

Product Description

The DMXC-4C-3Z-IW-W is a stylish 3-Zone DMX controller that perfectly complements any of our DMX decoders.

Product Features

  • Controls up to three zones
  • Compatible with standard 1-gang electrical box
  • Compatible with DMXD-series decoders
  • Individual control of R, G, B, & W channels
  • Can control multiple DMX decoders
  • Sensitive glass touch panel
  • Ten preset modes

Technical Specifications

ModelDMXC-4C-3Z-IW-W
Device ColorWhite
Voltage12-24V DC
DMX Wired ControlYes
DMX Channels12
Dimensions L*W*D4-3/4″ x 2-15/16″ x 1-1/8″
IP RatingIP20
Temp Range-4°F to 122°F
Color Touch WheelYes
Dim Range0.4% to 100%

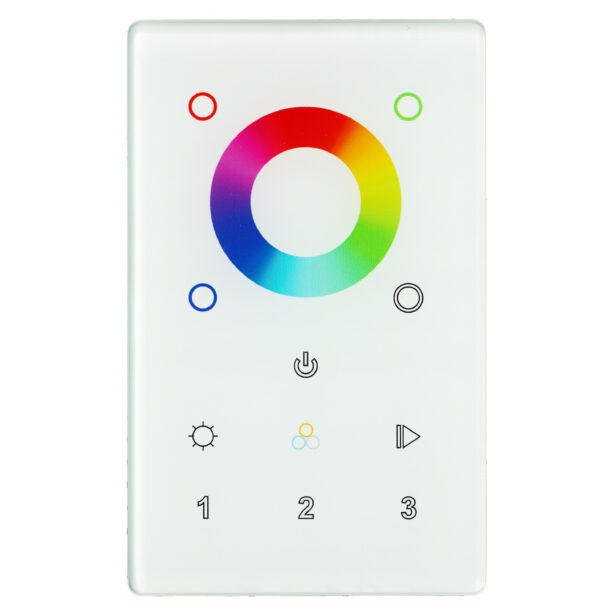

Button Operation & Layout

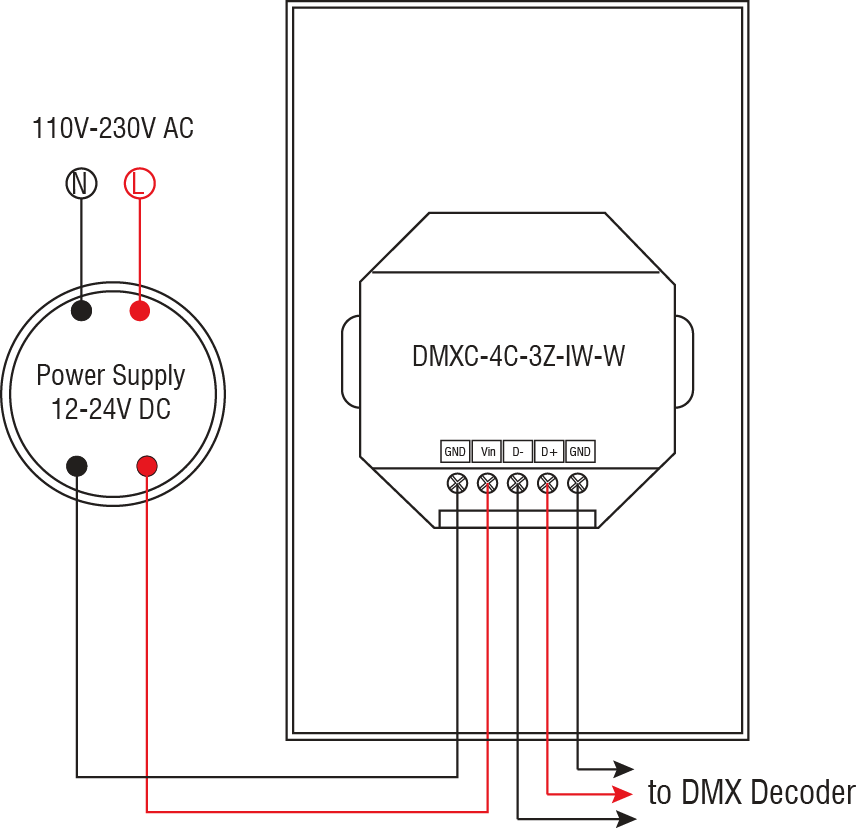

Wiring Example

ANA 217

ANA 217

1-1/2" (Height) × 1-15/16" (Width)
