DMX CCT 4 Zone In-Wall Controller

DMXC-2C-4Z-IW-W

Download Spec Sheet Contact Us Add to Project

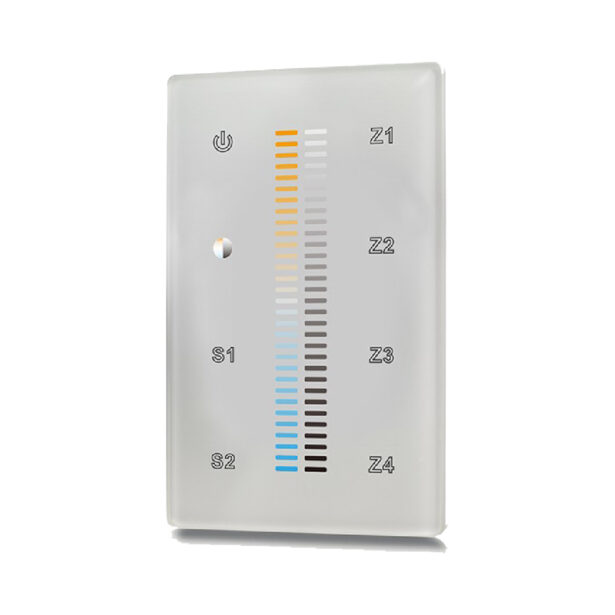

The DMXC-2C-4Z-IW-W is a sleek and modern 4-Zone DMX controller that perfectly complements any of our DMX decoders.

Controls up to Four Zones Separately or Synchronously
Saves up to Two Scenes per Zone
Compatible With DMXD-Series Decoders
Can Controller Multiple DMX Decoders
Compatible With Standard 1-Gang Electrical Box
Sensitive Glass Touch Panel
Remembers Last Scene
Backlit

Downloads

Spec Sheet

Installation Instructions

Warranty

Warranty Info

Technical Specifications

Series	DMXC
Input Voltage	12-24V DC
Device Color	White
DMX Wired Control	Yes
DMX Channels	8

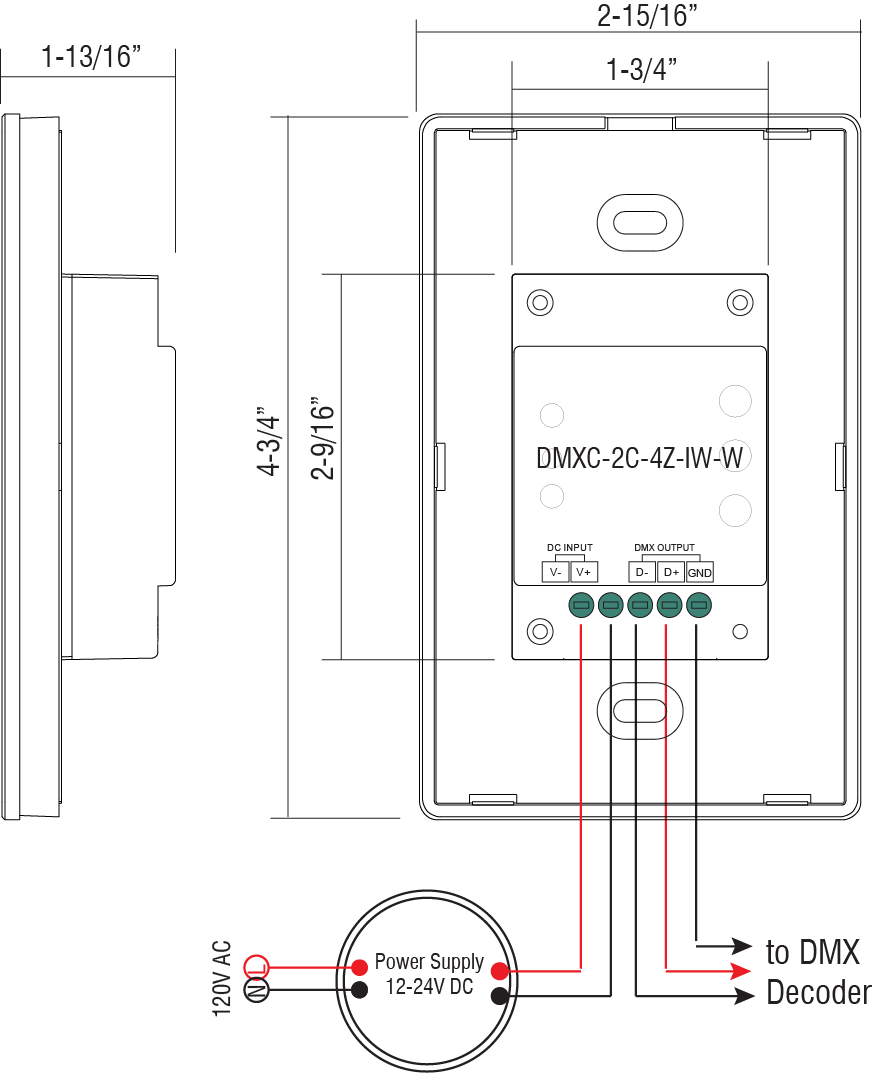

Length	4.75” (120.65mm)
Width	2.93” (74.61mm)
Height	1.81” (46.03mm)
IP Rating	IP20
Dimming Range	0 – 256
Color Touch Slide	Yes
Operating Temperature	32°F (0°C) to 104°F (40°C)
Storage Temperature	-13°F (-25°C) to 122°F (50°C)
Indoor/Outdoor	Indoor
Input Protocol	DMX512
Output Protocol	DMX512
Channels of Control	2
Data Connection Method	Screw Terminal
Wire Termination Types	Screw Terminal
Requires Programming Boolean	No
Zones	4
Customer Input Method	Touch Panel
