CH-725

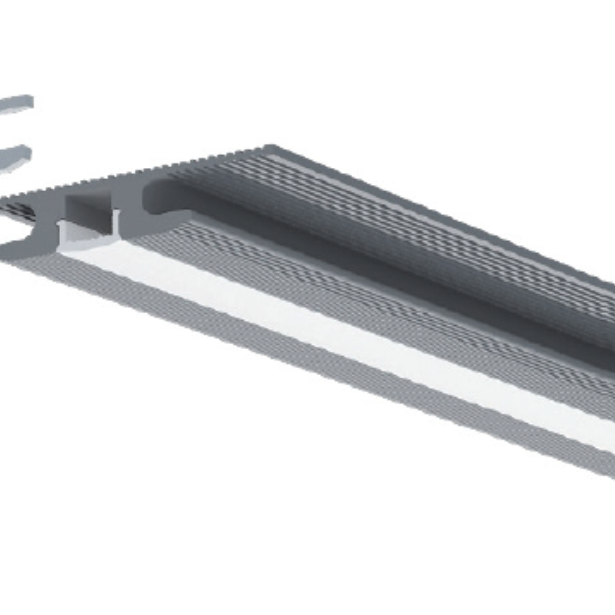

Extruded Aluminum Mounting Channel
- Available in 2 Meter Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Consult Factory for Custom Lengths & Finishes
Downloads
Spec Sheet
Spec SheetWarranty

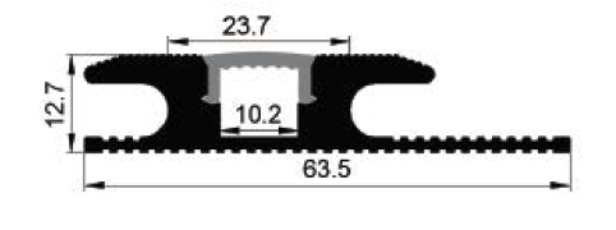

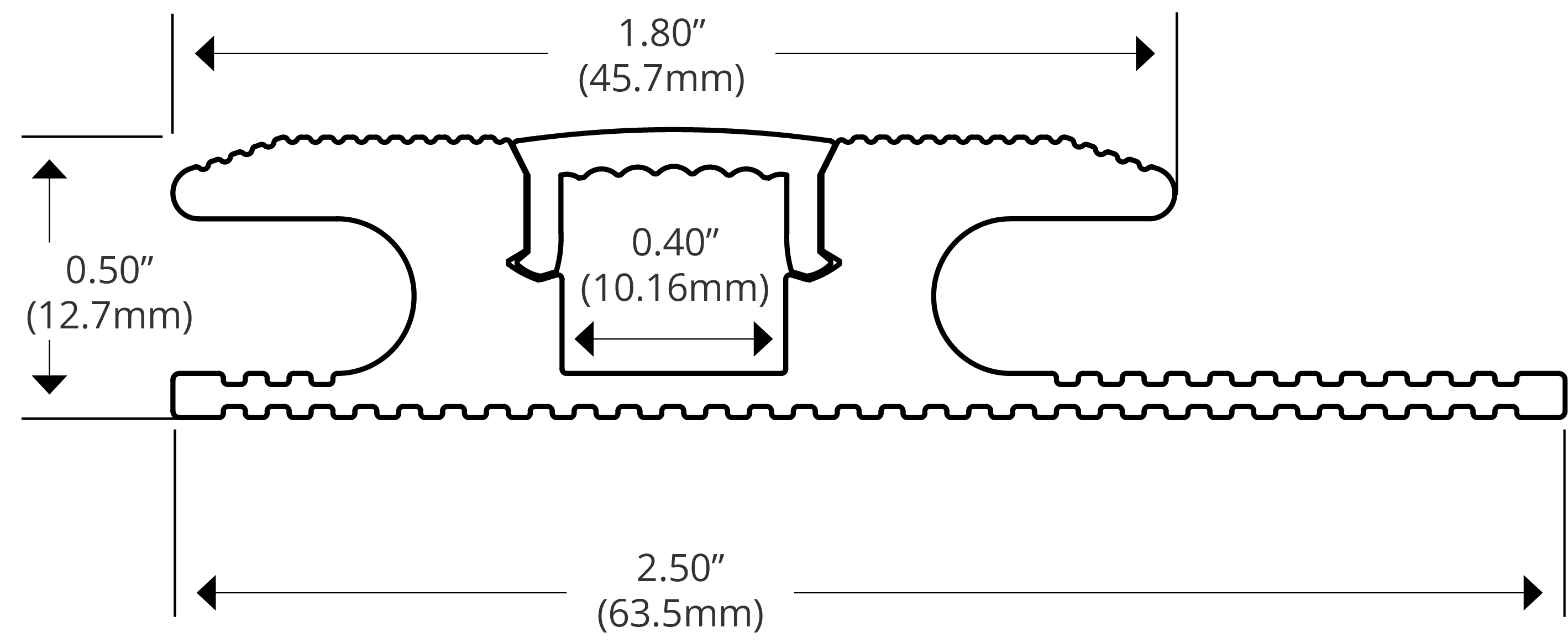

Technical Specifications
| Model | CH-725 |
| Length | 78.74 (2m) |
| Overall Width | 2.5" (63.5mm) |
| Overall Height | 0.5" (12.7mm) |
| Internal Width | 0.4" (10.2mm) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- CH-725 — CH-725
2. Length
- 2 — 2 Meters
3. Lens
- WH — White
- FR — Frosted
- CL — Clear
- BK — Black
4. Mounting Type
- SF — Surface Mount
5. End Cap
- EC — End Caps (Included)
