CH-0403

THIN LINE CHANNEL

SPEC SHEET

Part Number Builder

Product Description

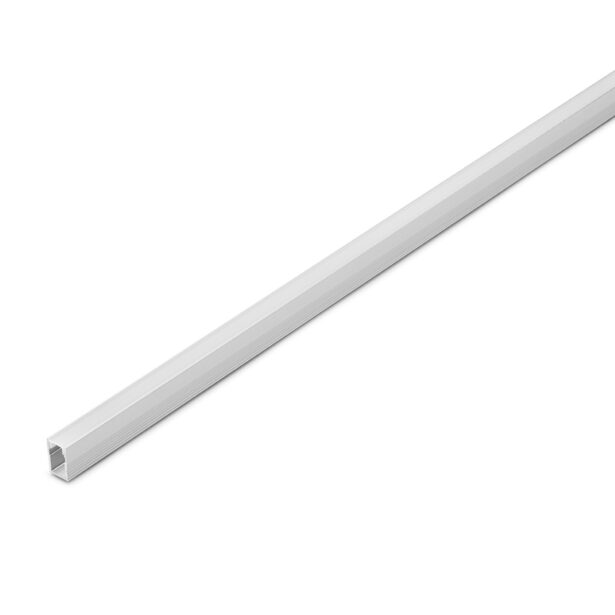

Add linear lighting to the tightest of spaces with our Thin Line tape and channel.

Store in a Temperature-Controlled Environment.



Product Features

  • Available In 78.74″ (2m) Sections
  • Extruded Aluminum Construction
  • Anodized Matte Finish
  • Consult Factory for Custom Lengths
  • Available in Various Finish Colors

Technical Specifications





Model CH-0403 W/ MOUNTING CLIP
Length 78.74″ (2m) 78.74″ (2m)
Width (External) 0.3″ (7.8mm) 0.4″ (10.29mm)
Width (Internal) 0.22″ (5.6mm) 0.22″ (5.6mm)
Height 0.46″ (11.9mm) 0.48″ (12.3mm)

Product Dimensions
