Product Description

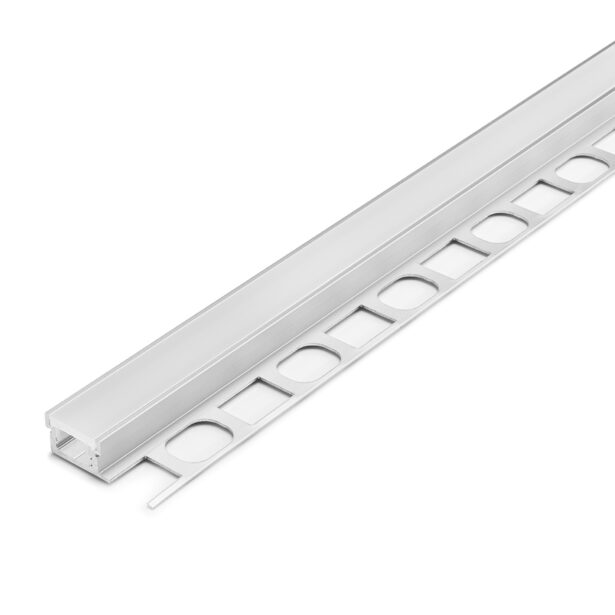

Create consistent lines of light that seamlessly transition from the floor to the wall to the ceiling with this series of channels. CH-0201 is ideal for tile, stone, and wood applications.

Consult Factory for Compatible Light Sources When Using Channel in a Floor Application. Store in a Temperature- Controlled Environment.



Product Features

  • Walkover Rated
  • Available In 78.74″ (2m) Sections
  • Extruded Aluminum Construction
  • Anodized Matte Finish
  • Consult Factory for Custom Lengths
  • Available in Various Finish Colors

Technical Specifications

Model CH-0201
Length 78.74″ (2m)
Width (External) 1.61″ (41mm)
Width (Internal) 0.48″ (12.3mm)
Height 0.47″ (12mm)

Product Dimensions

Series Description

The consistent lens thickness and lens width allow the use of CH-0200, CH-0201, and CH-0202 together to create a unified single line of light between different surfaces.

Consult factory for compatible light source.



Series Features

  • Walkover Rated
  • Longer Lasting Installation When Paired with Wet Rated Tape
  • Works on Floors, Walls, and Ceilings
  • Channels Components Are Compatible and Interchangeable Across Different Surfaces
  • Consistent Lens Width and Thickness for a Seamless Transition Between Mounting Surfaces
