CH-0010

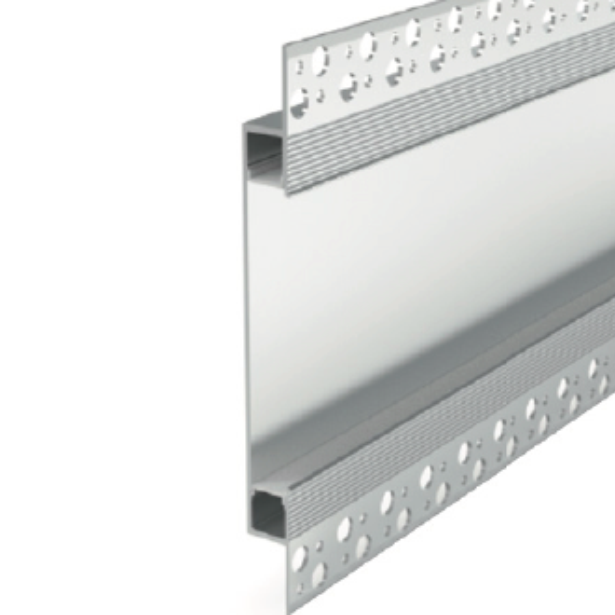

Trimless & Mud-in Channel
Create perfectly flush, seamless lines of light without modifying the structure behind the sheet rock.
- Available In 78.74″ (2m) Sections
- Extruded Aluminum Construction
- Anodized Matte Finish
- Drywall Mud-in Mounting for a Seamless Recessed Look
- Consult Factory for Custom Lengths and Finishes
- Available In Various Finish Colors
Downloads
Spec Sheet
Spec SheetWarranty

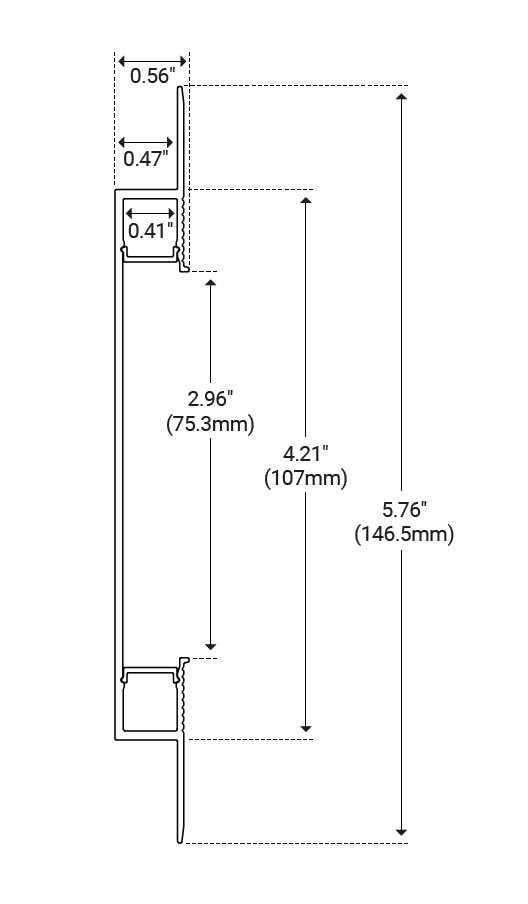

Technical Specifications
| Length | 78.74″ (2m) |
| Width (External) | 0.56″ (14.2mm) |
| Width (Internal) | 0.41″ (10.5mm) |
| Height | 5.76″ (146.5mm) |
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Product Code:
Make a selection in each category to complete your product code.
1. Series
- CH-0010 — CH-0010
2. Length
- 2 — 2 Meters
3. Lens
- WH — White
- WHC — White Continuous
4. End Caps
- EC — End Caps
