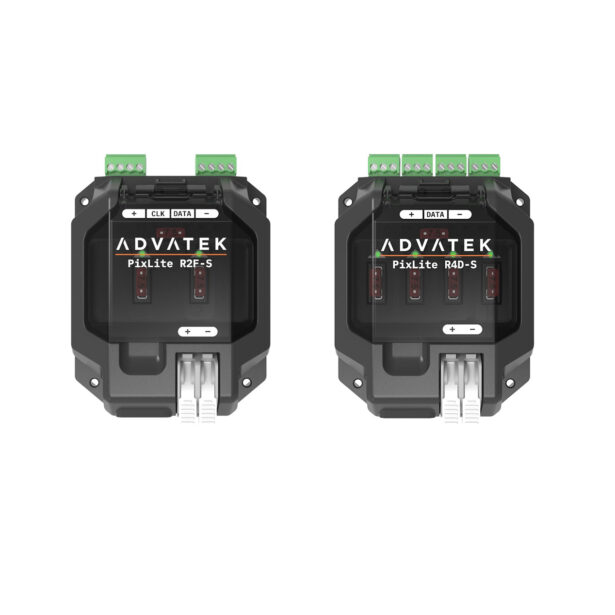

Advatek PixLite R2F-S + R4D-S
The durable and secure TX-R2F/R4D pixel LED receiver is designed for seamless integration with the TX-T8MK3 for long-distance data transmission. With its slimline form factor and ease of use, create stunning, professional-grade light shows over extended distances effortlessly. Must be paired with the Advatek T8-S MK3 transmitter.
- Receive Pixel Data up to 984ft (300m)
- Compact and Slim Design
- Over 50+ Pixel Protocols Supported
- 7.5A Fused Protection Per Output
Downloads
Technical Specifications
| Series | TX-R2F/TX-R4D |
| Input Voltage | 5–24V DC |
| Control Outputs | SPI |
| Per Output Current Limit | 7.5A (Mini Blade Fuse) |
| Total Current Limit | 15A (R2F-S)/30A (R4D-S) |
| Interfacing Input | Single RJ45 Input (from T8-S MK3) |
| Max Devices | Unlimited, Up to 8 Receivers Per Transmitter |
| Pixel Protocols | 50+ |
| Length | 3.75" (95.0mm) |
| Width | 3.00" (78.0mm) |
| Height | 1.30" (33.0mm) |
| Physical Build | Wall Mount/Din Rail |
| Operating Temperature | -4F (-20 °C) to 131F (55 °C) |
| Storage Temperature | -4F (-20 °C) to 131F (55 °C) |
Advatek Resources
Required software to control Advatek products.
Download Advatek Assistant 3 Software
Additional Advatek documentations.
Specify Your Product
Ready to build a product that achieves your project goals? Use our tool below to create a custom code and ensure seamless compatibility. Save your design and specifications in a project, and when you're ready to order, find a nearby Kelvix distributor to bring your vision to life.
Make a selection in each category to complete your product code.
- TX — Pixel Control
- R2F — PixLite R2F-S
- R4D — PixLite R4D-S
- RCV — Receiver
- SPI — Pixel SPI
- B — Black
