50HE-24V

50 WATT – 24 VOLT | UNIVERSAL DIMMING | CLASS 2 POWER SUPPLY

SPEC SHEET

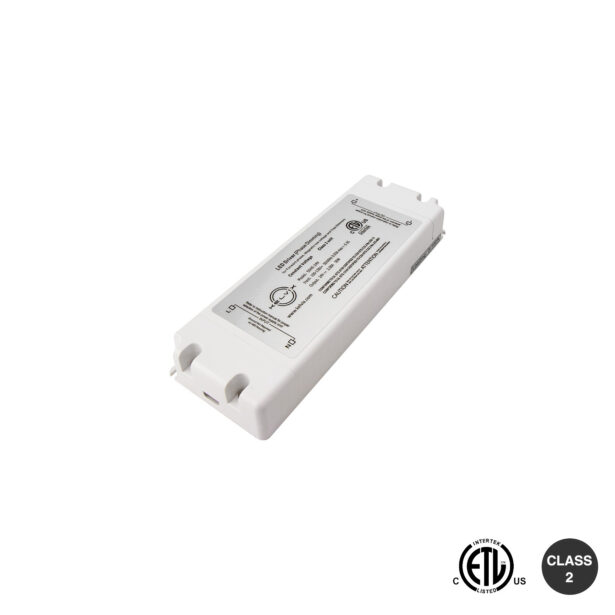

Product Description

The 50HE-24V is an indoor compact power supply. Its universal dimming allows use with Incandescent, MLV, and ELV dimmers. Instead of standard knock-out connections, this unit connects directly to power via the integral screw terminals.

  • Hardwire power supply with forward & reverse phase dimming
  • Primary side dimmable – ELV/MLV/INC
  • Rated for indoor use
  • ETL listed
  • Class 2

Technical Specifications

Model 50HE-24V
Input Voltage 120V AC
Output Voltage 24V DC / Constant Voltage
Max. Wattage 50W
Temp Range -20°F ~ 158°F
Dimensions L*W*D 7″ x 2-3/8″ x 1″
Classification Class 2

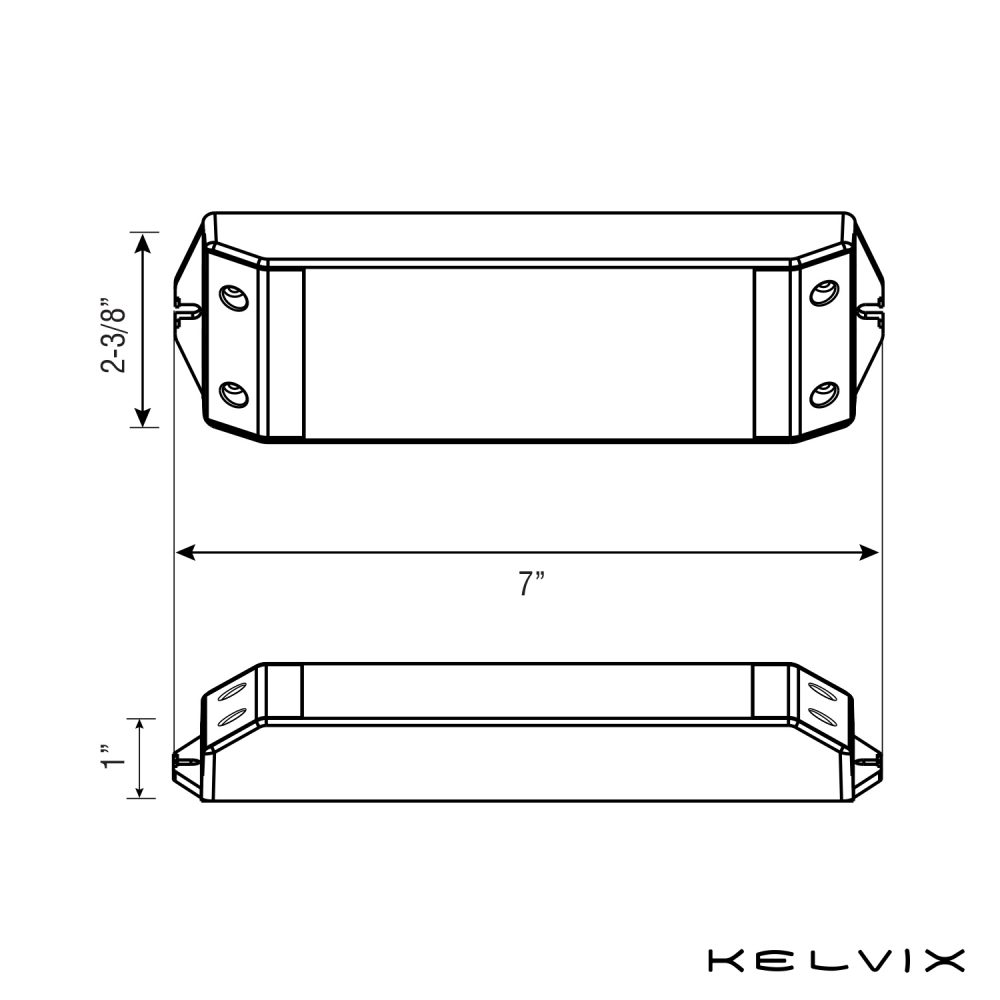

Product Dimensions

Wiring Example
